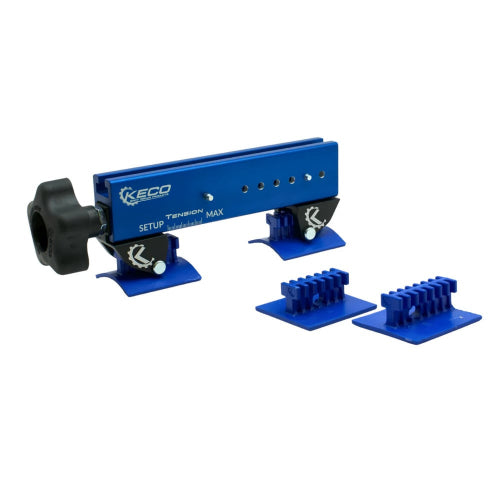

175 mm Lateral Tension Tool Beam (LTT BEAM) with Centipedes (KECO)

KECO 175 mm Lateral Tension Tool Beam (LTT BEAM) with Centipedes | Patent Pending

The 175 mm Lateral Tension Tool Beam (LTT BEAM) by KECO is a compact, innovative lateral tension system engineered for paintless dent repair (PDR) and glue pulling professionals who demand precision, versatility, and efficiency. This new patent-pending design enhances lateral tension technology by offering a shorter beam length for targeted metal flow control, enabling dent technicians to work with more accuracy and confidence.

Introduction to Lateral Tension in PDR

Lateral tension has become a critical technique in modern paintless dent repair. Unlike direct pushing methods, lateral tension applies sideways force to the panel’s metal, encouraging it to flow and naturally reduce dents. This approach reduces the risk of overstretching or damaging panels, especially in delicate areas such as crowns, creases, and body lines.

The KECO 175 mm LTT BEAM makes lateral tension accessible and practical even in tight or complex workspaces. Its compact design allows techs to position tension precisely where it’s most needed, which is key to efficient dent repair, especially for hail damage and intricate panel repairs.

Compact 175 mm Beam for Focused Control

The core of this tool is the 175 mm extruded aluminum beam. Shorter than standard lateral tension beams, this size offers superior maneuverability in confined spaces and around complicated panel contours. The beam is made from lightweight but durable extruded aluminum, providing a strong yet portable structure.

Precision-machined slide surfaces on the beam ensure smooth adjustments, while multiple adjustment holes allow for customizable setups. This means technicians can fine-tune the lateral tension system for various dent sizes, vehicle models, and repair scenarios.

The smaller footprint makes this tool ideal for:

• Tight panel spaces

• Working near panel crowns

• Using secondary panels or structural points for tension stability

Dual-Leg System for Stability and Power

The 175 mm LTT BEAM includes two precision-engineered legs, each serving a specific purpose to create an effective lateral tension setup:

• Stationary Leg: Made from high-strength, precision-cast and machined metal, this leg acts as a secure anchor point. It locks swiftly into place via KECO Centipede tabs’ lateral tension holes, ensuring reliable stability during pulls or pushes.

• Drive Leg: Also made from the same durable cast and machined metal, this leg functions as the active component that applies controlled push or pull force. It attaches easily to Centipedes and allows techs to adjust the direction and strength of tension applied to the damage.

Together, these legs provide a solid, stable system that transfers lateral tension precisely and efficiently to the dented panel.

KECO’s Signature Tension Knob for Precision Adjustment

One of the defining features of the LTT BEAM system is KECO’s signature tension knob. This knob offers:

• Smooth, fine control over lateral tension application

• The ability to incrementally increase or decrease force for delicate metal flow

• Compatibility with power tools through a hex nut design for quick tension adjustments when needed

This combination of finesse and speed lets technicians maintain total control during every stage of the repair, optimizing the metal flow without risking panel damage.

Included KECO Blue Centipede Tabs

The LTT BEAM comes complete with four KECO Blue Centipede tabs engineered to maximize grip and stability:

• Two 50mm x 54mm Rigid Centipedes: Flat, rigid tabs that provide a stable base and resist sliding under tension.

• Two 50mm x 54mm Contoured Rigid Centipedes with Lateral-Pull Hole: These tabs feature a lateral pull hole for attachment and a contoured shape that fits curved or irregular panel surfaces better, improving grip and reducing slippage.

The centipede tabs are crafted from durable materials built to withstand repeated use under high tension, ensuring reliable performance in every repair.

Practical Applications and Setup

The 175 mm LTT BEAM excels at precise dent repair work, especially where space is limited or near sensitive panel areas. Common uses include:

• Applying lateral tension just outside of crown areas to encourage metal flow without distortion

• Leveraging secondary panels or structural points like door jambs or frame edges for stability during pulls

• Creating setups where the dented area remains free and unobstructed for pushing or pulling dents

To set up:

1. Attach the KECO Blue Centipede tabs to appropriate panel locations around the damage area.

2. Secure the stationary leg to a stable tab, anchoring the beam firmly.

3. Attach the drive leg to the opposing tab to apply controlled tension across the dent.

4. Use the tension knob to increase lateral tension gradually, observing metal movement and adjusting as necessary.

For larger or more complex dents, technicians can use two 175 mm LTT BEAMs simultaneously to apply balanced tension from both sides of the damage. This approach frees the damaged area for direct repair access, improving efficiency and results.

Construction Quality and Durability

KECO builds the 175 mm LTT BEAM with materials and craftsmanship designed for professional, daily use:

• Beam: Extruded aluminum that combines lightweight handling with high strength and resistance to bending.

• Legs: Precision cast and machined metal components for strength and reliability.

• Hardware: High-quality fasteners and tension adjustment mechanisms designed to withstand wear and maintain smooth operation over time.

These build standards ensure the tool remains reliable and effective, minimizing downtime and replacement costs.

Advantages of the KECO 175 mm LTT BEAM

• Precision: Compact beam size allows exact placement of lateral tension force.

• Versatility: Modular design with adjustable holes and dual legs adapts to various dents and panels.

• Control: Signature tension knob provides fine-tuned control for optimal metal flow.

• Stability: Centipede tabs and precision legs ensure secure, slip-free setups.

• Efficiency: Quick setup and adjustment speeds up repair times.

• Durability: High-quality materials and machining promise long-term tool life.

Why Choose KECO’s LTT BEAM?

KECO has long been a trusted name in paintless dent repair tools, known for innovation and quality. The 175 mm LTT BEAM builds on that reputation by delivering a system specifically designed for targeted, precise lateral tension. This tool helps professionals tackle challenging dents with greater ease, better results, and less risk to the vehicle’s finish.

For technicians seeking the latest in lateral tension technology with a compact, versatile design, the 175 mm LTT BEAM with Centipedes is a smart investment.

Technical Specifications

• Beam Length: 175 mm (approx. 6.9 inches)

• Beam Material: High-strength extruded aluminum, precision machined

• Legs: Precision cast and machined metal, stationary and drive legs included

• Adjustment: Multiple holes for setup flexibility

• Tension Control: KECO tension knob with power tool compatibility

• Included Tabs: Four KECO Blue Centipedes (two flat rigid, two contoured with lateral-pull hole)

• Weight: Lightweight for ease of use and transport

Frequently Asked Questions

Q: Can the 175 mm LTT BEAM be used on larger dents?
A: While designed primarily for precision and tight spaces, two LTT BEAMs can be used together to manage larger damage areas.

Q: Is it compatible with all Centipede tabs?
A: It’s designed to work specifically with KECO Blue Centipedes, ensuring optimal fit and performance.

Q: How does the tension knob work?
A: The tension knob allows gradual, controlled tension increases for metal flow, with the option to speed up adjustments using a power drill.

Q: Can I use this on aluminum panels?
A: Yes, the system is suitable for both steel and aluminum panels common in modern vehicles.

Conclusion

The KECO 175 mm Lateral Tension Tool Beam (LTT BEAM) with Centipedes offers professional PDR techs a compact, versatile, and precise lateral tension system. Its patent-pending design, modular components, and fine-tuned control features make it ideal for detailed dent repair work, especially in tight or complex panel areas.

With quick setup, adjustable configurations, and durable construction, the LTT BEAM is a powerful tool for speeding dent removal while maintaining panel integrity. It’s an essential addition for technicians committed to delivering top-quality repairs efficiently.
