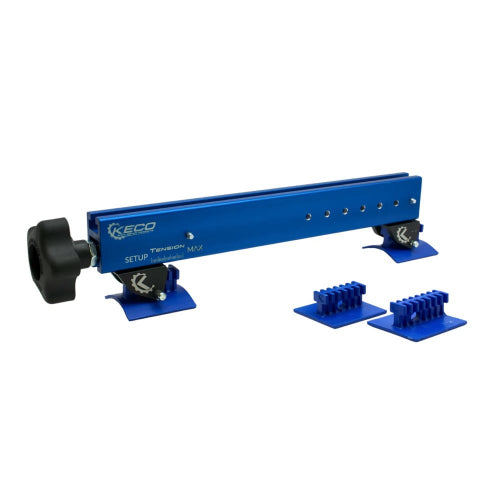

300 mm Lateral Tension Tool Beam (LTT BEAM) with Centipedes (KECO)

KECO 300 mm Lateral Tension Tool Beam (LTT BEAM) with Centipedes | Patent Pending

The KECO 300 mm Lateral Tension Tool Beam (LTT BEAM) is the newest advancement in lateral tension technology, designed to provide paintless dent repair (PDR) and glue pulling technicians with unmatched control, versatility, and efficiency. This patent-pending lateral tension system features a compact 300 mm beam paired with KECO’s signature Centipede tabs to deliver precise metal flow control and improved dent reduction.

Overview of Lateral Tension Technology

Lateral tension is a proven technique in paintless dent repair that applies controlled force sideways across damaged panels. Instead of pushing directly on the dent, lateral tension causes the metal around the dent to flow, encouraging the dent to reduce naturally. This method reduces stress on the panel, minimizes the risk of over-pulling, and helps maintain the panel’s original contours.

KECO’s LTT BEAM brings this technique to a new level by combining precision-machined components with a modular, easy-to-use system. It’s designed to work in tandem with Centipede tabs, which grip firmly to the panel and provide solid anchor points for applying lateral tension.

Compact 300 mm Beam for Precision and Flexibility

The 300 mm length of the LTT BEAM makes it ideal for targeting specific dent areas, especially around crown regions or smaller damage zones. Its short beam design offers greater maneuverability in tight spaces and around complex panel shapes where longer beams may be impractical.

Crafted from high-strength extruded aluminum, the beam balances strength with lightweight portability. The aluminum is precision machined for smooth sliding and adjustment, allowing technicians to position the beam exactly where it’s needed.

Multiple adjustment holes along the beam provide flexibility to fine-tune the setup for different panel sizes, damage types, and repair styles. This modular approach means the LTT BEAM can be adapted for a variety of lateral tension scenarios, from small dents to larger damage areas.

Dual Leg System for Stability and Power

The LTT BEAM includes two specialized legs that serve distinct roles during the lateral tension process:

• Stationary Leg: This leg is made from high-strength, precision-cast and machined components designed to lock firmly in place. It attaches quickly and securely using KECO Centipedes’ lateral tension holes. The stationary leg acts as a reliable anchor point, providing stability during pulls and pushes.

• Drive Leg: Also precision cast and machined for strength and durability, the drive leg is the active component of the system. It can be used to push or pull against the damage area with controlled force. Like the stationary leg, it attaches via the Centipedes’ lateral tension holes, ensuring fast setup and a secure connection.

Together, these legs allow technicians to create effective lateral tension setups, leveraging secondary panels, door frames, or other structural points to increase repair leverage and control metal flow.

KECO’s Signature Tension Knob for Fine Control

One of the standout features of the LTT BEAM is KECO’s tension knob. Designed for precision and ease of use, this knob lets technicians adjust tension smoothly and incrementally during repairs. This control is vital for achieving the right amount of metal flow without over-pulling or risking damage to the panel.

For faster tension adjustments, the tension knob also includes a hex nut design compatible with power drills. This means techs can quickly increase or release tension while maintaining the finesse needed for detailed work.

Included KECO Blue Centipede Tabs

The LTT BEAM package comes with four KECO Blue Centipede Tabs, designed specifically to maximize grip and leverage in lateral tension applications:

• Two 50mm x 54mm Rigid Centipedes: These solid, flat tabs provide a firm hold on the panel surface, ensuring stability during tension pulls.

• Two 50mm x 54mm Contoured Rigid Centipedes with Lateral-Pull Hole: These tabs feature a lateral-pull hole designed to work perfectly with the LTT BEAM’s legs and tension system. The contoured shape helps the tab conform to curved panel surfaces, increasing contact area and grip strength.

All tabs are built to resist sliding or shifting under load, allowing technicians to focus on the repair rather than on retightening or repositioning.

How the LTT BEAM Enhances Paintless Dent Repair

The LTT BEAM is engineered to make lateral tension more accessible, precise, and efficient. Key benefits include:

• Precision Application: The compact beam length lets techs place lateral tension exactly where it’s most effective. This is especially helpful near panel crowns, edges, or complex curves.

• Modular Flexibility: Dual legs and adjustable beam holes mean the system can adapt to a variety of setups, damage types, and vehicle designs.

• Improved Metal Flow: By controlling lateral tension force and direction, the LTT BEAM helps metal flow smoothly, reducing the effort needed to knock down dents.

• Reduced Risk: Precise tension control lowers the chance of over-pulling or stretching panels, protecting the vehicle’s finish and structural integrity.

• Time Savings: Fast setup with KECO’s patented centipede tabs and quick tension adjustments speed up repairs and increase shop efficiency.

Practical Setup and Use

Setting up the LTT BEAM system is straightforward, even in tight spaces:

1. Attach the included Centipede tabs to the damaged panel at appropriate anchor points.

2. Secure the stationary leg of the LTT BEAM to one tab, locking it firmly in place.

3. Connect the drive leg to a tab positioned to apply tension effectively across the dent area.

4. Use the tension knob to gradually increase lateral tension, watching metal movement carefully.

5. Adjust beam positioning and tension as needed for optimal dent reduction.

For more complex dents or larger damage, technicians can use two LTT BEAM units simultaneously — one on each side of the damage. This setup frees the damaged area for direct work without obstruction, enhancing precision and accessibility.

Construction and Durability

KECO builds the LTT BEAM with high-grade materials designed to withstand the demands of daily professional use. The extruded aluminum beam is strong yet lightweight, resistant to bending or deformation. Legs are precision cast and machined for maximum strength and longevity, while hardware components are designed to provide secure connections and consistent performance.

All parts are engineered to resist wear and maintain smooth operation over years of service, helping shops avoid downtime and replacement costs.

Why Choose the KECO LTT BEAM?

• Patent Pending Innovation: A new approach to lateral tension tools, providing unmatched versatility.

• Precision Control: The tension knob and modular beam allow fine adjustments.

• Compact Design: Perfect for hard-to-reach spots and tight working conditions.

• Modular Legs: Stationary and drive legs provide reliable stability and power.

• Included Tabs: Blue Centipede tabs engineered for maximum grip and compatibility.

• Enhanced Efficiency: Quick setup and adjustment save time on every job.

• Durable Build: Professional materials designed for long-term shop use.

Frequently Asked Questions

Q: What types of dents is the LTT BEAM best suited for?
A: It excels at precision lateral tension for hail damage, crease pulls, and detailed dent reduction in small to medium damage zones.

Q: Can I use this system on all vehicle types?
A: Yes, the modular design and adjustable beam make it compatible with a wide range of vehicles and panel materials.

Q: How fast is the setup?
A: With KECO Centipedes and quick-attach legs, most setups can be completed in minutes.

Q: Is power tool use recommended?
A: The tension knob can be adjusted by hand for finesse or with a power drill for faster tensioning, depending on technician preference.

Conclusion

The KECO 300 mm Lateral Tension Tool Beam (LTT BEAM) with Centipedes represents a significant leap forward in lateral tension dent repair technology. Combining a compact, precision-machined aluminum beam, specialized dual legs, and KECO’s Blue Centipede tabs, this system offers paintless dent repair professionals a powerful and flexible tool to improve metal flow, reduce repair time, and protect vehicle panels.

Its patent-pending design ensures that technicians can apply lateral tension exactly where needed, using the right amount of force, with confidence and speed. For shops looking to elevate their PDR capabilities and efficiency, the LTT BEAM is a must-have addition.
