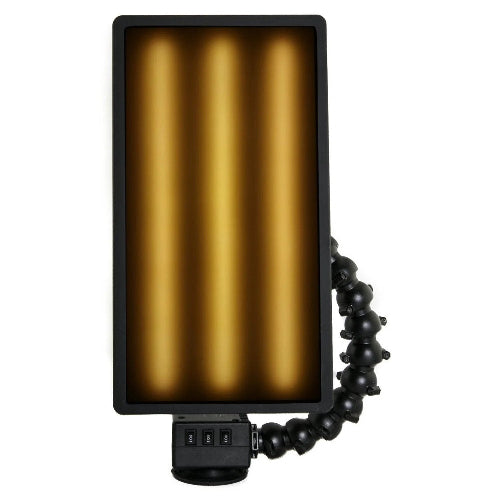

6 Strip 18V Cordless PDR LED Light Board | 14" & 20" Dent Repair Light with Spinal Cord Mount

Overview

The 6 Strip 18V Cordless PDR LED Light Board is built for technicians who need clear, adjustable lighting without cords getting in the way. Designed for paintless dent repair, this board gives you full control over light intensity, color balance, and positioning so you can read dents accurately and work efficiently.

Available in 14-inch and 20-inch sizes, this light features a 6-strip configuration with both warm and cool LED options. Powered by 18V lithium-ion batteries, it keeps your setup mobile while delivering consistent, high-quality light for any repair environment.

6 Strip LED System for Accurate Dent Reading

This board uses a balanced mix of warm and cool LED strips to help you see panel movement clearly.

• (3) Warm white strips – 2 outer, 1 center
• (3) Cool white strips – 2 outer, 1 center

The warm white is centered, while the cool white is slightly off-centered to improve contrast and dent visibility.

Custom configurations are available upon request.

Independent Control for Full Lighting Flexibility

Three switches on the base allow you to control your lighting setup.

• Each switch controls two LED strips
• Two power settings per switch
• One off position

This lets you fine-tune your lighting based on the repair, panel type, or personal preference.

PWM Dimmer for Brightness Control

The built-in PWM dimmer gives you smooth brightness adjustment.

• Dial in exact light intensity
• Reduce glare on reflective panels
• Improve visibility in different environments

Cordless 18V Power System

Powered by 18V lithium-ion batteries, this light keeps your setup clean and mobile.

• Compatible with M18 batteries and similar replacements
• No cords or external power needed
• Easy battery swapping

Battery life:

• 3 to 8+ hours depending on usage and battery size
• Recharge time: 15 to 40 minutes

Batteries and charger sold separately

360 Degree Movement with Spinal Cord System

The included Spinal Cord mounting system gives you full control over positioning.

• 360 degree rotation and twist
• Adjustable tension at each joint
• Extend or shorten without disassembly

You can set sections loose for movement or tight for support, giving you total control over how the board holds position.

Built-In Suction Mount

The integrated suction cup system provides secure mounting with easy maintenance.

• Replaceable plunger and pad
• Compatible with Woods and Ram Twist Cups
• Strong hold on panels and glass

Durable Construction for Daily Use

Built for real PDR work environments.

• Matched acrylic face plate for smooth light fade
• Secured acrylic will not slide or fall out
• Quick disconnects for replacing wearable parts
• Low-profile base design

Key Features

6 LED Strip System
Balanced warm and cool lighting for accurate dent reading.

Independent Switch Control
Customize your lighting setup quickly.

PWM Dimmer
Adjust brightness for perfect visibility.

Cordless 18V Power
Run on M18 batteries for mobile use.

Spinal Cord Mount System
Full adjustability with tension control.

360 Degree Movement
Position the board exactly where you need it.

Built-In Suction Cup
Secure mounting with replaceable components.

Durable Acrylic Face Plate
Consistent light fade and long-term reliability.

Product Includes

• 6 Strip LED Light Board (14" or 20")
• PWM Dimmer
• Manual suction cup mount
• Elim A Dent Spinal Cord system

Important Notes

• Only compatible with M18 series batteries or similar replacements
• Batteries and charger sold separately
• Custom LED configurations available upon request

Perfect For

• PDR technicians
• Hail repair
• Mobile dent repair setups
• Shop environments
• Anyone needing clear, adjustable dent reading light
